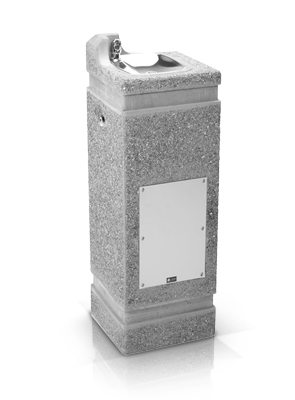

Vandal Resistant Square Pedestal Drinking Fountain
These drinking fountains use freeze-resistant valve assembly to provide year round operation. Fully engineered
pneumatic valve assembly is one of the best in freeze-resistant technologies. The column like design allows the square pedestal
to be placed securely in multiple locations without taking up excess space. Equipped with vandal resistant components, these
fountains are not easily disrupted, quickly discouraging the worst of vandals. These highly durable drinking fountains feature
concrete construction with an exposed aggregate finish and wire to reinforce the vibra-cast.
The anti-squirt bubbler head is polished chrome-plated forged brass with an integral basin shank that is
shielded and vandal-resistant. The polished chrome-plated push-button requires less than 5 lbs. to activate, and the waste
strainer allows for top down access to waste lines for easy maintenance. Options include a Freeze-Guard valve for areas with
high water tables, and custom concrete color and finish options are shown below.
Perfect channels for
decorative 2" x 2" inlaid tiles
Freeze Resistant Valves
Model 6518FR is a fully engineered system with pneumatic
operated
freeze resistant bury valve installed below frost line, with check valve to drain water from
unit when not in use and to prevent back-flow cross contamination.
Model 6519FR Freeze-Guard™ is patented
freeze resistant push-button operated valve
system. Fully enclosed system collects drained back supply water into water-tight reservoir located below
the frost line. Collected water is then expelled into fountain waste system with the next operation of valve.
Designed for areas with high water table, poor drainage or surface flooding.
Matching Products
Model 3121FR
(Portland Gray Cement Color
Exposed Aggregate Finish)
Legacy Model Number '3121FR', '3121FR-CC', '3121FR-CF', & '3121FR-CCF'
Now Requires the 3121FR, 3121FR-CC, 3121FR-CF, or 3121FR-CCF and one of Valve Systems (Model 6518FR & 6519FR) Listed Below (Sold Separately) for a Complete Unit.
- Model 3121FR - Square Pedestal (Freeze Resistant) Drinking Fountain.
- Model 3121FR-CC - Custom Cement Color Square Pedestal (Freeze Resistant) Drinking Fountain.
- Model 3121FR-CF - Custom Finish Square Pedestal (Freeze Resistant) Drinking Fountain.
- Model 3121FR-CCF - Custom Color & Finish Square Pedestal (Freeze Resistant) Drinking Fountain.
- Model 6518FR - Valve System (Freeze Resistant) fully engineered pneumatic operated valve Applicable for 2 Bubblers.
- Model 6519FR - Valve System (Freeze Resistant) specially designed Freeze-Guard™ valve for areas with a high water table, poor drainage, or surface flooding. Applicable for a single Bubbler.
Haws manufactures all drinking fountains to be lead-free by all known definitions including
ANSI/NSF Standard 61, Section 9,
California Proposition 65 and the
Federal Safe Drinking Water Act.
Square Pedestal
Freeze Resistant
)
