Perfect for Auxiliary Seating

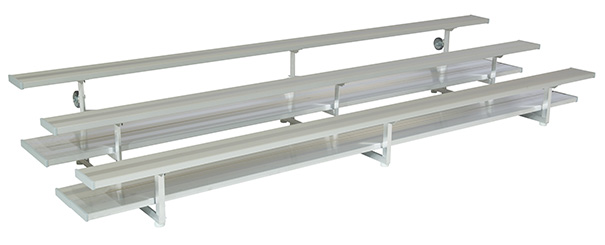

Tip N Roll Bleachers can be rolled out and positioned when
extra seating is needed. Non-marring rubber foot pads are standard to
protect floors. These Preferred Series aluminum bleachers feature double
foot planks for more comfortable and wider walkways.These bleachers are
easily tipped up onto their swivel casters for movement, and caster
brakes keep the bleacher from rolling when stored.
Features
- 2 & 3 Row Units.
- 17" Front Row Seat Height.
- 2" x 10" Nominal Seat Planks.
- 7-1/2', 9', 12' 15' & 21' Lengths.
- 20" Double-Wide Footboards.
- Aluminum Angle Frame Understructure.
- Non-Marring Rubber Foot Pads.
- Exlusive Outrigger for 4 Row Models Increases Stability for Movement.
It is the buyer's responsibility to check their local building and
fire codes to determine the compliance requirements in your community.
These bleachers are fully compliant with BOCA, IBC and ICC codes as of 1/1/2012. Always take extra care when you tip up bleachers.
Matching Products
High strength to weight ratio 6061-T6 aluminum alloy extrusion footboards
naturally protect from corrosion. Standard mill finish walking surface. Chemically cleaned aluminum welds.
Galvanized hardware will not rust like zinc-plated hardware.
Specifications
- All seat and foot planks accommodate 120 plf across a 6' span with a maximum deflection of 9/16".
- Designed to support, in addition to their own weight, a uniformly distributed live load of not less than 100
psf of gross horizontal projection of the bleachers.
- Designed to resist, with or without a live load, a horizontal wind load of 30 psf of gross vertical projection.
- In addition to the live load, designed to resist sway forces of 24 plf of seat plank in a direction parallel to
the length of the seat, and 10 plf of seat plank in a direction perpendicular to the length of the seat.
