More Hydration. Less Maintenance.

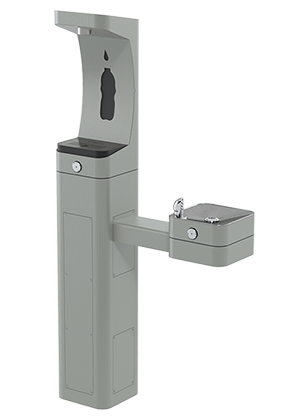

The Haws 3611 Pedestal Bottle Filler and Drinking Fountain is a vandal-resistant hydration
station designed for high-traffic outdoor environments such as parks, campuses and public facilities.
The unit is highly configurable, allowing for modification of the station either before or after installation.
While the standard configuration includes one drinking fountain and one bottle filler, additional
components—such as a second fountain, bottle filler, dog bowl or hose bib faucet—can be added or
swapped as site requirements evolve.
The unit features an all-stainless-steel valve body machined from solid bar stock, providing
enhanced durability and long-term reliability. Maintenance is streamlined through full front-panel service
access, allowing technicians to reach the push-button assembly, water control cartridge, integrated supply
strainer and stream height adjustment without removing the valve assembly.
Constructed from heavy-duty fabricated stainless steel with a powder-coated finish, the station
incorporates vandal-resistant components including the bubbler, push buttons, bottle filler nozzle, drain and
access plates. The interchangeable fountain and bottle filler arms support multiple ADA-compliant mounting
heights—standing adult, wheelchair and child wheelchair—ensuring accessibility for diverse users.
Additional functional features include a large-opening bottle filler with a 1.0 gpm quick-fill
rate, a rotatable bowl and bubbler head to accommodate site layout requirements, and optional custom color
finishes. The design prioritizes durability, configurability and simplified maintenance for long-term
facility operations.
Model 3611
Model meets all current Federal Regulations for the disabled including those in
the Americans with Disabilities Act. Haws manufactures drinking fountains, faucets and electric
water coolers to be lead-free by all known definitions including NSF/ANSI/CAN 61- Section 9,
NSF/ANSI/CAN 372, California Proposition 65, and the Federal Safe Drinking Water Act. Product
is compliant to California Health and Safety Code 116875 (AB 1953-2006), and 116876 (AB 100)
"NSF/ANSI/CAN 61: Q ≤ 1".
Prop 65 Warning. For California Residents Warning: This
product contains a chemical known to the State of California to cause cancer and/or birth defects
or other reproductive harm. Please click here for more information.
