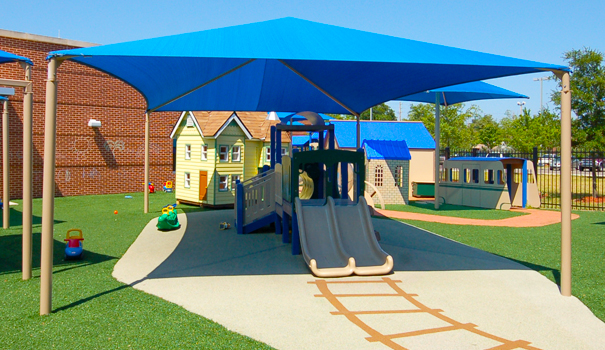

Four Post Rectangle Hip Shade Structures

Model RD152208IG | Sandstone/True Blue

Functional, Inviting & Popular

The architecturally popular Four Post Rectangle Shade Structure can become a focal point for many areas that invites year round outdoor activities. Install Hip style canopies directly over playgrounds, pools, bleachers, picnic areas, to help protect against heat related injuries and cool other site amenities.

The Rachel Knitted, non-porous polyethylene fabric allows hot air to rise and escape, ultimately reducing the feel like temperatures, encouraging longer stays. UV stabilized shade material acts as a shield inhibiting exposure to damaging UV rays, preventing premature deterioration of site amenities.

Features
  • Powder-Coat Finish
  • Fabric Meets California State Fire Marshal requirements, NFPA 701 & ASTM E84
  • Blocks Harmful UV Rays
  • Water Repellent Fabric
  • Engineered to Withstand High-Speed Winds
  • Custom Sizes Available - Please Call
  • Glide Elbows™ Included
Matching Products
Quick Release Elbow
State-of-the-art Glide Elbows™ increase the life span of the shade and saves time, effort and money. Glide Elbows™ are a standard hassle free mechanism that allows a quick, secure installation and removal of the shade fabric with a cordless drill or simple wrench.
GlideElbows™

The steel posts and support ribs are fully primed and sealed in a multi-step powder-coated finish, combating rust and corrosion. Because of the strategically placed post locations, a Hip style shade has prime structural and canopy stability and coverage.

Hip style shade structures all steel design has been engineered for the rigors of harsh weather and high speed winds, 105mph with fabric attached and 150mph without. In the event of severe weather or need for off season storage, Glide Elbows™ allow a quick, easy and safe removal and reinstall of the shade fabric.

To ensure maximum security and stability, it's suggested for these structures to be secured with reinforced concrete footings. The Four Post Shade Structure is ASTM, CSFM and NFPA certified.

It is the buyer's responsibility to check their local building and fire codes to determine the compliance requirements in your community.
We can work with you to customize a solution that meets just about any specific compliance requirements, call us at 1-800-323-5664.
Post Color Options Fabric Color Options
Item Specific Details Available on Linked Model Numbers Below
Share
Bookmarks

10' Wide Rectangle Hip Shade Structures | 3-1/2"Dia. | In-ground Mount

Qty
RD101208IG 10' x 12' (640 lbs) $4,587.00
RD101508IG 10' x 15' (660 lbs) $4,765.00
RD101808IG 10' x 18' (680 lbs) $5,121.00
RD102008IG 10' x 20' (700 lbs) $5,245.00

13' Wide Rectangle Hip Shade Structures | 3-1/2"Dia. | In-ground Mount

Qty
RD131508IG 13' x 15' (680 lbs) $4,915.00
RD132008IG 13' x 20' (710 lbs) $5,426.00

15' Wide Rectangle Hip Shade Structures | 5"Dia. | In-ground Mount

Qty
RD152208IG 15' x 22' (820 lbs) $5,770.00
RD152508IG 15' x 25' (860 lbs) $5,956.00

18' Wide Rectangle Hip Shade Structures | 5"Dia. | In-ground Mount

Qty
RD182008IG 18' x 20' (844 lbs) $6,065.00
RD182408IG 18' x 24' (871 lbs) $6,897.00
RD182808IG 18' x 28' (970 lbs) $7,204.00
RD183208IG 18' x 32' (1,120 lbs) $8,505.00
RD183608IG 18' x 36' (1,150 lbs) $9,965.00

20' Wide Rectangle Hip Shade Structures | 5"Dia. | In-ground Mount

Qty
RD202408IG 20' x 24' (900 lbs) $7,013.00
RD202608IG 20' x 26' (910 lbs) $7,166.00
RD203008IG 20' x 30' (1,060 lbs) $7,985.00
RD203408IG 20' x 34' (1,170 lbs) $9,930.00
RD203808IG 20' x 38' (1,200 lbs) $11,130.00

24' Wide Rectangle Hip Shade Structures | 5"Dia. | In-ground Mount

Qty
RD242608IG 24' x 26' (1,070 lbs) $8,188.00
RD243008IG 24' x 30' (1,100 lbs) $9,720.00

24' Wide Rectangle Hip Shade Structures | 5-1/2"Dia. | In-ground Mount

Qty
RD243408IG 24' x 34' (1,260 lbs) $10,063.00
RD243808IG 24' x 38' (1,390 lbs) $10,408.00
RD244008IG 24' x 40' (1,400 lbs) $11,087.00

28' Wide Rectangle Hip Shade Structures | 5-1/2"Dia. | In-ground Mount

Qty
RD283008IG 28' x 30' (1,360 lbs) $10,788.00
RD283408IG 28' x 34' (1,390 lbs) $11,222.00

28' Wide Rectangle Hip Shade Structures | 6-5/8"Dia. | In-ground Mount

Qty
RD283808IG 28' x 34' (1,790 lbs) $12,275.00

10' Wide Rectangle Hip Shade Structures | 3-1/2"Dia. | Surface Mount

Qty
RD101208SG 10' x 12' (690 lbs) $5,258.00
RD101508SG 10' x 15' (710 lbs) $5,435.00
RD101808SG 10' x 18' (730 lbs) $5,792.00
RD102008SG 10' x 20' (750 lbs) $5,916.00

13' Wide Rectangle Hip Shade Structures | 3-1/2"Dia. | Surface Mount

Qty
RD131508SG 13' x 15' (730 lbs) $5,587.00
RD132008SG 13' x 20' (760 lbs) $6,097.00

15' Wide Rectangle Hip Shade Structures | 5"Dia. | Surface Mount

Qty
RD152208SG 15' x 22' (850 lbs) $6,427.00
RD152508SG 15' x 25' (880 lbs) $6,613.00

18' Wide Rectangle Hip Shade Structures | 5"Dia. | Surface Mount

Qty
RD182008SG 18' x 20' (870 lbs) $6,723.00
RD182408SG 18' x 24' (890 lbs) $7,555.00
RD182808SG 18' x 28' (990 lbs) $7,862.00
RD183208SG 18' x 32' (1,110 lbs) $9,046.00
RD183608SG 18' x 36' (1,140 lbs) $10,286.00

20' Wide Rectangle Hip Shade Structures | 5"Dia. | Surface Mount

Qty
RD202408SG 20' x 24' (920 lbs) $7,670.00
RD202608SG 20' x 26' (930 lbs) $7,825.00
RD203008SG 20' x 30' (1,050 lbs) $8,527.00
RD203408SG 20' x 34' (1,160 lbs) $10,251.00
RD203808SG 20' x 38' (1,190 lbs) $11,450.00

24' Wide Rectangle Hip Shade Structures | 5"Dia. | Surface Mount

Qty
RD242608SG 24' x 26' (1,060 lbs) $8,729.00
RD243008SG 24' x 30' (1,090 lbs) $10,041.00

24' Wide Rectangle Hip Shade Structures | 5-1/2"Dia. | Surface Mount

Qty
RD243408SG 24' x 34' (1,140 lbs) $10,386.00
RD243808SG 24' x 38' (1,270 lbs) $10,729.00
RD244008SG 24' x 40' (1,280 lbs) $11,407.00

28' Wide Rectangle Hip Shade Structures | 5-1/2"Dia. | Surface Mount

Qty
RD283008SG 28' x 30' (1,240 lbs) $11,108.00
RD283408SG 28' x 34' (1,280 lbs) $11,543.00

28' Wide Rectangle Hip Shade Structures | 6-5/8"Dia. | Surface Mount

Qty
RD283808SG 28' x 34' (1,682 lbs) $12,654.00
(Prices F.O.B. Origin)
Some Assembly Required
